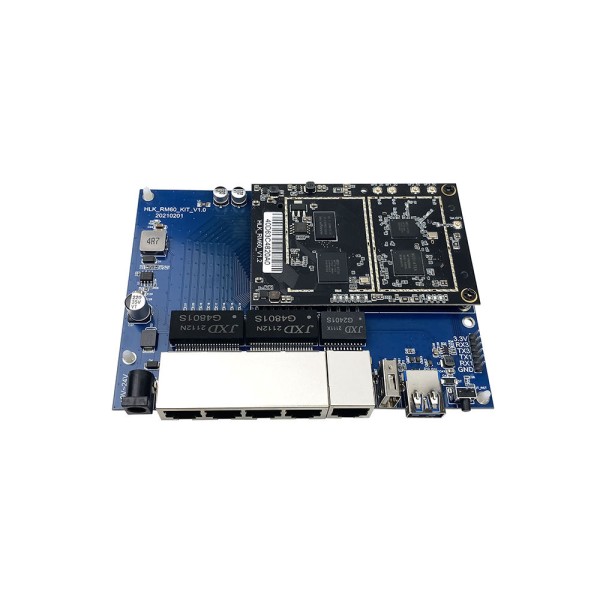

Embedded WiFi 6 Dual-Band Gigabit OpenWrt Router Module (MT7621+MT7905)-10PCS

* Shipping Notes: [Self-pickup] Pick up from Shenzhen warehouse, [Freight Collect] defaults to express delivery (can be specified). If sea freight LCL is required, please first select the [Freight Collect] option and contact customer service for freight calculation.

Features：

• Supports WiFi 6 (IEEE 802.11ax) standard, backward compatible with 802.11a/b/g/n/ac for wide device compatibility
• Adopts high-performance MT7621AN + MT7905 chipset for stable data processing and wireless transmission
• Dual-band (2.4G/5.8G) concurrent operation, with 20/40MHz bandwidth (2.4G) and 20/40/80MHz bandwidth (5.8G)
• Pre-installed OpenWrt open firmware for flexible secondary development and plugin expansion (e.g., VPN, traffic control)
• Supports STA + AP dual working modes to meet scenarios like wireless access and hotspot deployment
• Built-in TCP/IP protocol stack and OTA wireless upgrade for convenient maintenance
• Equipped with 4 external IPEX antennas to enhance wireless signal coverage and stability
• Rich expansion interfaces (UART/IIC/PWM/GPIO/SPI) for connection with smart devices (e.g., POS, LED controllers)
• Gigabit Ethernet (100/1000Mbps) support to match WiFi 6’s high bandwidth demand

Technical Specifications：

• Main Chipset: MT7621AN (main SoC) + MT7905 (WiFi 6 baseband)
• CPU: 32-bit RISC (MIPS1004Kc architecture), 880MHz main frequency
• RAM: 128MB DDR2
• Flash Memory: 16MB
• Wired Transmission Rate: 100/1000Mbps (Gigabit Ethernet)
• Wireless Transmission Rate: 2.4G: Up to 573Mbps; 5.8G: Up to 1201Mbps
• Wireless Band: 2.4GHz + 5.8GHz
• Power Supply: Single 3.3V DC
• Antenna Interface: 4 external IPEX interfaces
• Working Temperature: -20℃ ~ 60℃ (ambient)
• Working Humidity: 10% ~ 95% (non-condensing)
• Product Size: 90mm × 60mm (L×W)
• Expansion Interfaces: UART, IIC, PWM, GPIO, SPI
• Supported Protocols: IEEE 802.11a/b/g/n/ac/ax, TCP/IP

Warranty:

• 1 year after shipment.

Packaging Method:

• Standard export carton packaging.
