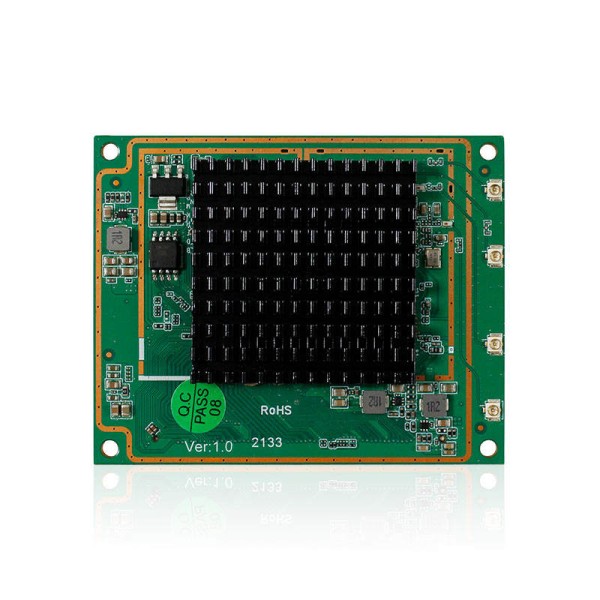

High-Performance Embedded WiFi 6 Dual-Band Gigabit Module (MT7621 Chipset)

* Shipping Notes: [Self-pickup] Pick up from Shenzhen warehouse, [Freight Collect] defaults to express delivery (can be specified). If sea freight LCL is required, please first select the [Freight Collect] option and contact customer service for freight calculation.

Features：

• Supports WiFi 6 (IEEE 802.11ax) dual-band, backward compatible with 802.11a/b/g/n/ac, enabling max dual-band concurrent rate up to 1774Mbps (2.4G: 573Mbps; 5.8G: 1201Mbps)
• Adopts MTK MT7621DAT+MT7905DAN+MT7975DN chipset, with dual-core MIPS 880MHz CPU for stable high-speed data processing
• Equipped with 5 Gigabit Ethernet ports to match WiFi 6’s high bandwidth demand, supporting fast wired transmission
• Rich expansion interfaces (UART×2, USB 2.0×1, USB 3.0×1, PCIE×1, TF card, GPIO×25) for multi-scenario connections
• Supports Dynamic Frequency Selection (DFS) for 5G band stability, and STA/AP working modes for flexible deployment
• Industrial-grade design: operating temperature -20℃~+70℃, humidity 5%~95% (non-condensing), adapting to complex environments
• Compatible with OpenWrt open firmware for secondary development (supports VPN, QoS, etc.) to meet customization needs256MB DDR3 RAM + 16MB Flash (expandable to 32MB) ensures stable system operation

Technical Specifications：

•  Main Chipset: MTK MT7621DAT (main SoC) + MT7905DAN (WiFi6 baseband) + MT7975DN (RF)
•  CPU: Dual-core MIPS 1004Kc, 880MHz
•  RAM: 256MB DDR3
•  Flash Memory: 16MB SPI NOR Flash (max expandable to 32MB)
•  Wireless Protocol: IEEE 802.11a/b/g/n/ac/ax (2×2 MIMO)
•  Wireless Band: 2.40~2.4835GHz (2.4G), 5.725~5.850GHz (5.8G)
•  Wireless Transmission Rate: 2.4G: Up to 573Mbps: 5.8G: Up to 1201Mbps
•  Ethernet Ports: 5×Gigabit Ethernet (1000Mbps)
•  Expansion Interfaces: UART×2 (TTL), I2C×1, USB 2.0×1, USB 3.0×1, PCIE v2.0×1, TF Card×1, GPIO×25
•  Antenna Interface: Standard IPEX / Plug-in SMA (optional)
•  Power Supply: 12V DC ±10%, Average Power Consumption: 3.8W
•  Operating Temperature: -20℃ ~ +70℃
•  Storage Temperature: -40℃ ~ +90℃
•  Humidity: 5% ~ 95% (non-condensing)
•  Static Protection: Human Body Model: ±2000V: Machine Mode: ±200V
•  Product Dimension: 75mm × 60.5mm × 12.3mm (L×W×H)
•  Product Weight: 30g (including heat sink)
•  Supported Firmware: OpenWrt, Linux 2.6.36/3.10 SDK

Warranty:

• 1 year after shipment.

Packaging Method:

• Standard export carton packaging.
